1. Brief introduction:

   Alloy 800H and alloy 800HT are Ni-Fe-Cr alloys that have the same basic composition as alloy 800 but with significantely higher creep-rupture strength,normally used above  approximately 1100℉（593℃）where resistance to creep and stress rupture is required.

   Alloy 800H is used in chemical and petrochemical processing, power plants for super-heater and reheater tubing, industrial furnaces and heat-treating equipment.




2. Main specifications:

   Chinese	UNS	Werkstoff Nr.
   NS112	N08810	1.4958
   800HT	N08811	1.4959




3. Chemical composition under ASTM B408-2016 standard:

   Grade	chemical composition,%
   	Ni	Cr	Fe	Mn	C	Cu	Si	S	Al	Ti	Al+Ti
   alloy N08810	30.0-35.0	19.0-23.0	≥39.5	≤1.5	0.05-0.1	≤0.75	≤1.0	≤0.015	0.15-0.6	0.15-0.6	/
   alloy N08811	30.0-35.0	19.0-23.0	≥39.5	≤1.5	0.06-0.1	≤0.75	≤1.0	≤0.015	0.15-0.6	0.15-0.6	0.85-1.2




4. Fe element shall be determined arithmetically by difference.

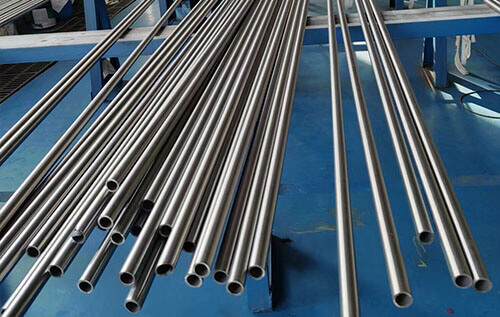

   wire,rod,forging, bar,strip,sheet/plate,tube/pipe.




5. Main produce standards:

   Wire,Rod, Bar	Forging	Plate/Sheet/Strip	Seamless Tube/Pipe
   ASTM B408  ASME SB408	ASTM B564    ASME SB564	ASTM B409 ASME SB409  AMS5871	ASTM B163 ASME SB163 ASTM B407      ASME SB407
