Introduction to GH4169
GH4169 is a Fe-Ni-Cr based precipitation hardening deformation superalloy with a long-term use temperature range of - 253~650 ℃, a short-term use temperature of 800 ℃, and high strength, good toughness, and oxidation and corrosion resistance in high and low temperature environments when below 650 ℃. And good processing and welding properties and long-term organizational stability.
GH4169 similar brand
| China | U.S.A | Germany | France |
| GH4169/GH169 | Inconel718/UNS N07718（NO7718） | W.Nr.2.4668 | NC19FeNb |
GH4169 Chemical Composition
| C | Cr | Ni | Co | Mo | Al | Ti | Fe |
| ≤0.08 | 17.0~21.0 | 50~55 | ≤1.0 | 2.8~3.3 | 0.3~0.7 | 0.75~1.15 | remain |
| Nb | B | Mg | Mn | Si | P | S | Cu |
| max | max | max | max | max | max | max | |
| 4.75~5.5 | 0.006 | 0.01 | 0.35 | 0.35 | 0.015 | 0.015 | 0.3 |

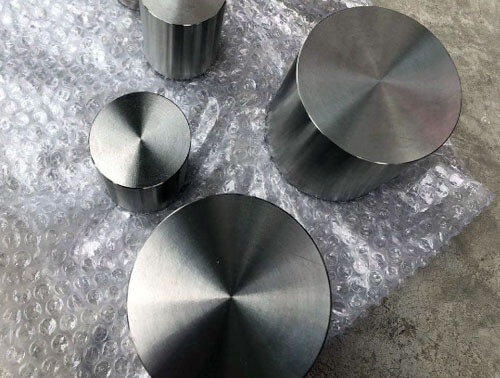

GH4169 material specification
Hot rolled rod: 10-100mm, forged rod: 100mm~350mm, cold rolled sheet: 0.05mm-4.0mm, hot rolled plate: 4mm-14mm, with 2mm~10mm, forging rings of various sizes and specifications, and individual grades in stock are variable.
GH4169 Processing and Welding Performance
The alloy has satisfactory welding performance, and can be welded by argon arc welding, electron beam welding, seam welding, spot welding, and other methods. For directly aged components, inertial friction welding can be performed in the forged state, and after welding, direct aging treatment can be performed to obtain joints with high endurance strength.
More GH4169 (/GH169, Inconel 718) product parameters »
